CHINA Competition High speed powerful die steel plate cutting band saw machine

10 Jan February 2026 | LionNord

I. Core Functions: Covering Heavy-Duty Sawing Needs in Multiple Scenarios

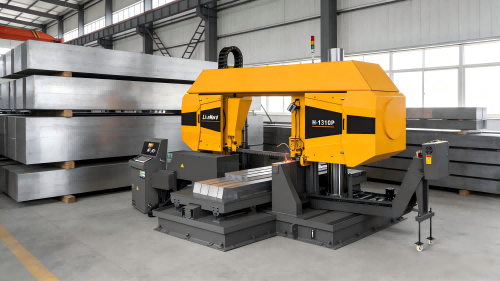

* **Extra-Large Sawing Capacity:** Designed for heavy-duty workpieces, the extra-large H-1310 model can handle 1300×1000mm square bars and φ1000mm round bars. Some angle models support -60° to +45° tilt sawing to meet the processing needs of irregularly shaped workpieces.

* **High-Speed and High-Efficiency Cutting Performance:** Saw band speed can reach 15-100m/min (frequency adjustable). Equipped with an 18.5kW high-power saw band motor, the cutting rate for D31045 steel reaches 104cm²/min, more than 40% higher than ordinary saws.

* **Automated and Intelligent Control:** Standard configuration includes an NC/PLC control system and touchscreen, supporting NC feeding within 1000mm, automatic speed adjustment, and saw band breakage detection. Some models can achieve fully automatic sawing of high-hardness materials (tungsten steel, sapphire, etc.). II. Structural Design: Balancing Precision and Durability

Rigid Frame and Vibration Damping Design

Utilizing a double-column or gantry structure, the saw beam is reinforced with a continuous bending design, paired with a 16mm full-plate saw beam, increasing radial load capacity by 30% compared to industry standards. The transmission mechanism is precisely balanced and calibrated, controlling vibration to within 0.1mm, reducing saw blade wear.

High-Precision Guiding and Drive System

The saw belt wheel uses a hardened rim + NSK bearing, with a 3-bearing support design to enhance radial load tolerance;

Reinforced adjustable tungsten carbide clamping plates ensure sawing accuracy ≤0.1mm/m;

Hydraulic tensioning device and precision hydraulic valve group achieve constant tension control. Humanized and Safety Features: Equipped with a hydraulic full-stroke clamp (clamping force up to 50kN), a dual-brush power chip removal system, and an automatic chip conveyor. The table height is uniformly 900mm to suit industrial operating habits. It is also CE certified and features safety functions such as saw tilt stop and emergency braking. III. Core Features: Technological Breakthrough and Cost Optimization: Extended Saw Blade Life Technology: Through a triple design of "vibration-damping transmission + constant tension + precise guidance," the saw blade breakage rate is reduced by 60%, and its service life is up to 1.5 times that of ordinary saws, solving the industry pain point of "being able to afford a saw but not being able to afford a saw blade." Low Energy Consumption and High Reliability: Utilizing high-quality components such as Taiwanese solenoid valves, the failure rate is only 1/3 of the industry average, with no oil leakage issues; the cooling system power is as low as 180W, reducing energy consumption by 20% compared to similar products. Globalized Quality and Service: The entire series is ISO-9001 and CE certified, with an annual production capacity of over 2,000 units, exported to 60 countries, and provides 24-hour fault response.
