Other Metalworking Machinery
CNC automatic iron bar shearing machine with automatic loading table

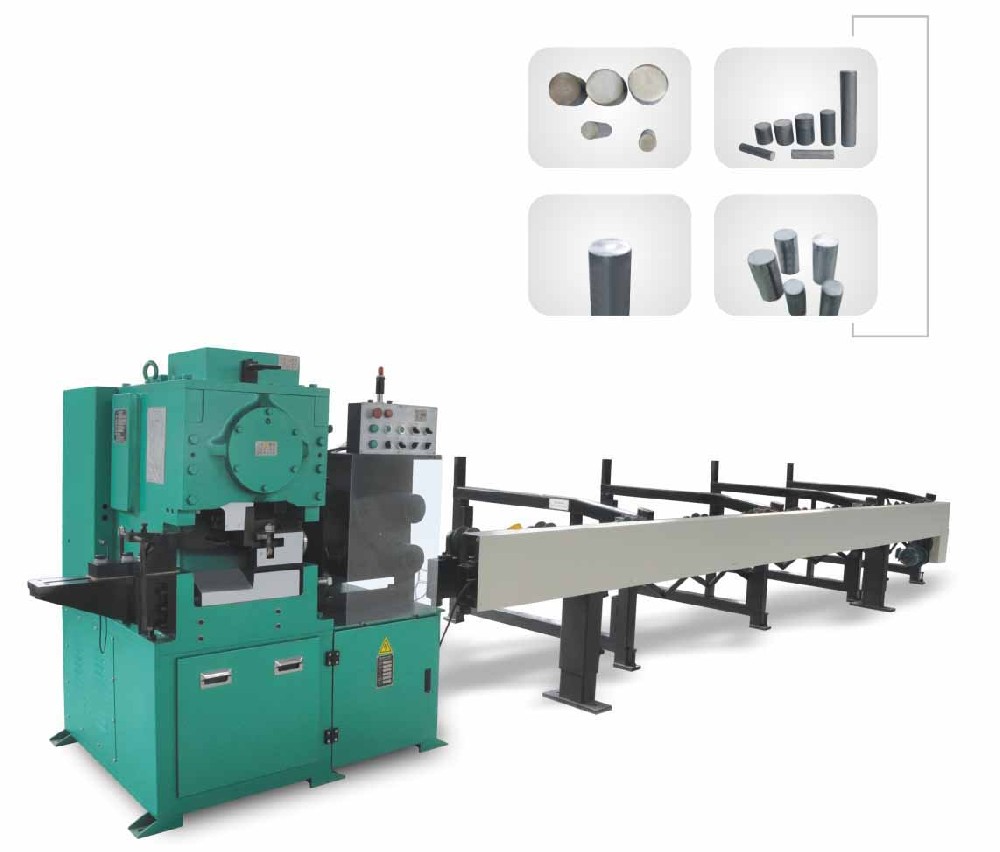

High speed Automatic metal bar shearing machine with automatic loading table
Model number SM-32NC (10-30mm) SM-40NC SM-50NC SM-65NC SM-80NC
Benefits at a glance
| Model No. SM-32NC | New | |
| shear diameter | Φ16 and 32mm | |
| Cutting length range | 20-300 mm | |
| Cutting speed (m/min) | 70 pcs | The length dimension can be made as the required of the customer. |
| End obliquity | ≤2 | The other end not required |
| End roundness | 0.95 | |
| Shear weight tolerance(g) | ±5 g | |
| Major motor power(kw) | 3kw | |
| Gross weight(kg) | 1000kg | |
| Materail | Max cutting size (round) | |
| #20 Steel Q235 | 32mm | |
| 20MN 20 Cr | 32mm | |
| #45 | 32mm | |
| #55 /40Cr /20 CrMn / 2Cr13 | 24mm | |
| 35 CrMo 3Cr13 | 20mm | |
| 42CrMo Gcr15 60Cr2Mn | 16mm |
