Tube End Forming Machine

Double head chamfering machine

Double head chamfering machine

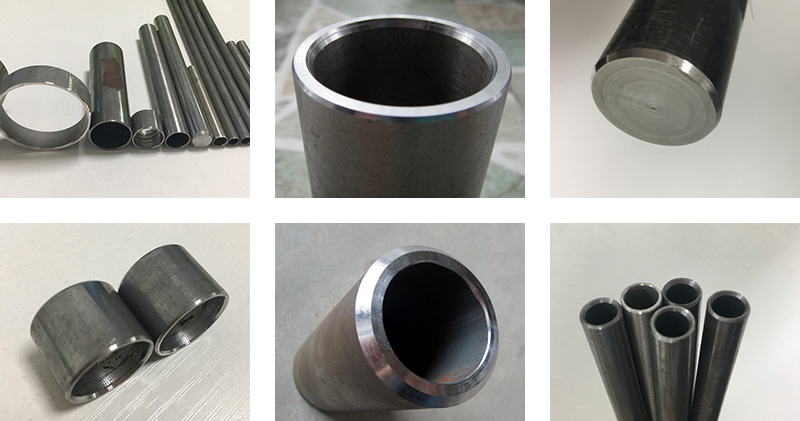

Inside + Outside Chamfering
Facing
Centering
Deep Chamfering
Radius Chamfering
Length Measuring

Benefits at a glance

double head chamfering machine is a type of machine used to chamfer the edges of materials, such as metal or plastic. It has two heads that can simultaneously chamfer both the top and bottom edges of the material. This machine is commonly used in manufacturing processes to remove sharp edges, create smooth finishes, and prepare the material for further processing or assembly. The two heads typically have rotating cutting tools or grinding wheels that can be adjusted to different angles and sizes to achieve the desired chamfer.

No.	Item	Description
1	Model	MT50
	Processing capacity	Φ12-80mm
2	Suitable material	Steel pipe, iron pipe, aluminum pipe, copper pipe, Stainless steel, bar etc
3	Working length	200-600mm
4	Main motor power	3HP X 6P
	Compressed air	6-9kgs/cm2, 120ml/min
5	Machine weight	800kg
6	Working precision	±0.1mm
7	Machine dimension	1300x900x1500mm

More,Stronger, Faster,Stable ,Efficiency,Short Tailing
